109
单端面密封 平衡型 旋向固定 Single seal,Balanced,Dependent on direction of rotation -
101
单端面密封 非平衡型 旋向固定 Single seal,Unbalanced,Dependent on direction of rotation -
206
多弹簧 轴向双端面 任意旋向 Single seal,Unbalanced,Independent on direction of rotation -
T80
单端面密封 平衡型 任意旋向 金属波纹管 Single seal,Balanced,Independent on direction of rotation,Metal bellows -
T85
单端面密封 平衡型 任意旋向 金属波纹管 Single seal,Balanced,Independent on direction of rotation,Metal bellows -
152
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent on direction of rotation -
1523 1524
单端面密封 平衡型 旋向固定 Single seal,Balanced,Dependent on direction of rotation -
1527 1528
单端面密封 非平衡型 旋向固定 Single seal,Unbalanced,Dependent on direction of rotation

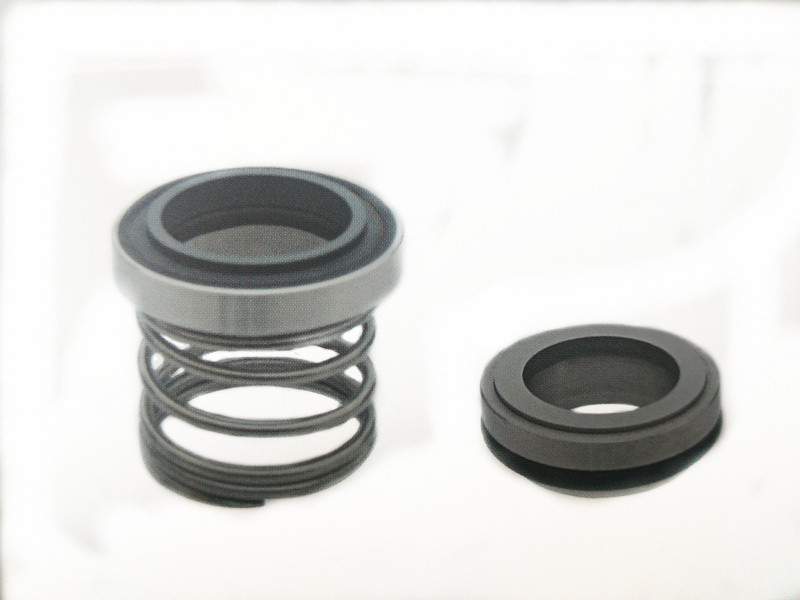

109
型号：
技术参数：
被密封介质：水、油类、中等以下腐蚀性介质
密封腔压力：≤1.6MPa
密封腔温度：-20℃~180℃
线速度：≤15m/Sec
轴径：20-120mm
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chember：≤1.6MPa
Temperature in the sealed chember：-20℃~180℃
Linear velocity：≤15m/Sec
Shaft：20-120mm

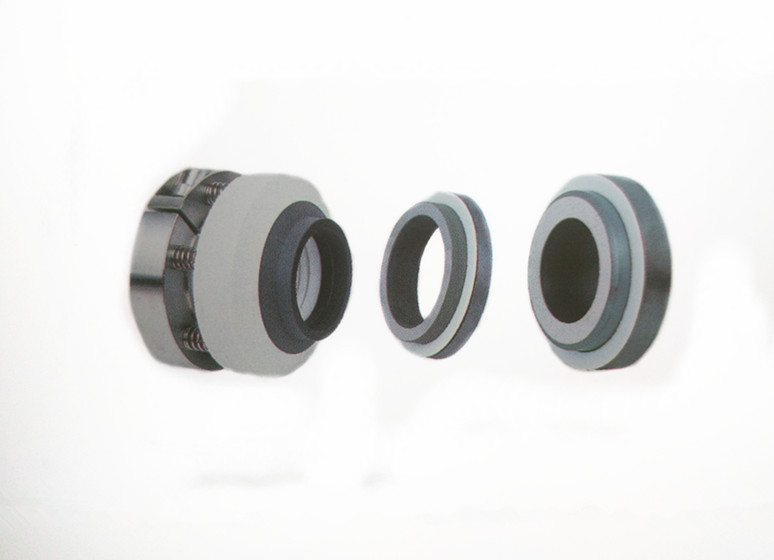

101
型号：
技术参数：
被密封介质：水、油类、中等以下腐蚀性介质
密封腔压力：≤0.8MPa
密封腔温度：-20℃~80℃
线速度：≤10m/Sec
轴径：16-70
Mediums to be sealed:Water,oil,etc.moderate corrosive and below medium
Pressure in the sealed chamber：≤0.8MPa
Temperature in the sealed chamber：-20℃~80℃
Linear velocity：≤10m/Sec
Shaft：16-70

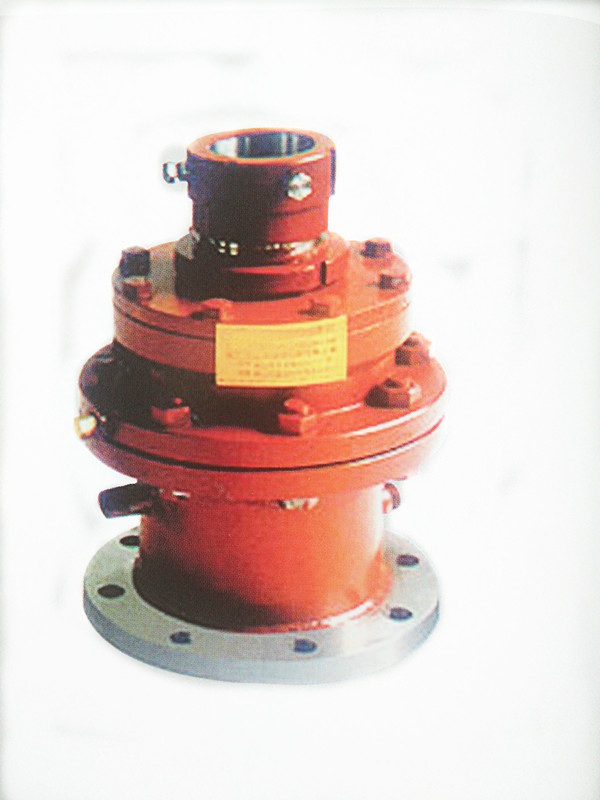

206
型号：
技术参数：
被密封介质：易燃、易爆、强腐蚀溶液
密封腔压力：≤1.6MPa
密封腔温度：-40℃~180℃
线速度：≤0.5m/Sec
Mediums to be sealed：Explode easily,Easy Burn,Strong Decay Aqua
Pressure in the sealed chamber：≤1.6MPa
Temperature in the sealed chamber：-40℃~180℃
Linear velocity：≤0.5m/Sec

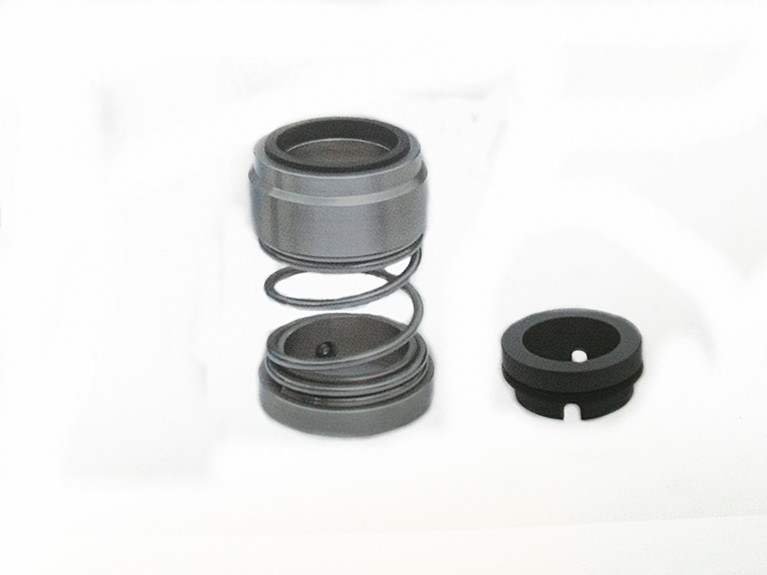

T80
型号：
技术参数：
被密封介质：高温，高粘度介质
密封腔压力：≤2.5MPa
密封腔温度：-20℃~400℃
线速度：≤15m/Sec
Mediums to be sealed：The medium with high temperature and viscidity
Pressure in the sealed chamber：≤2.5MPa
Temperature in the sealed chamber：-20℃~400℃
Linear velocity：≤15m/Sec

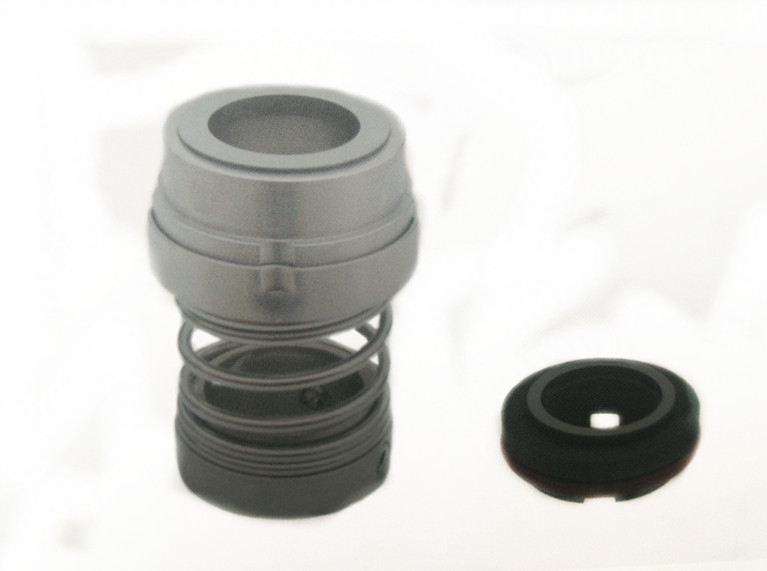

T85
型号：
技术参数：
被密封介质：高温，高粘度介质
密封腔压力：≤2.5MPa
密封腔温度：-20℃~300℃
Mediums to be sealed:The medium with high Temperature and viscidity
Pressure in the sealed chamber：≤2.5MPa
Temperature in the sealed chamber：-20℃~300℃
152
型号：
技术参数：
被密封介质：各种浓度的硫酸，盐酸，醋酸，磷酸，稀硝酸等强腐蚀性化工介质
密封腔压力：≤0.5MPa
密封腔温度：80℃
线速度：≤15m/Sec
Mediums to be sealed:Highcorrsion mediums in different concetration,such as sulfuric,hydrchloric scid,phosphoric acetic acid,ect
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec

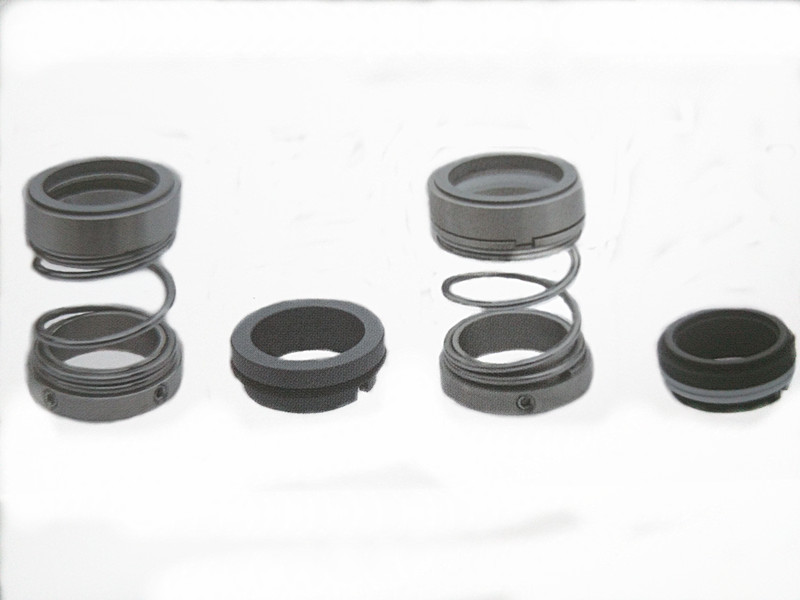

1523 1524
型号：
技术参数：
被密封介质：水、油、中等以下腐蚀性介质
密封腔压力：≤3MPa
密封腔温度：-20℃~150℃
线速度：≤15m/Sec
Mediums to be sealed：Water , oil , etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤3MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤15m/Sec

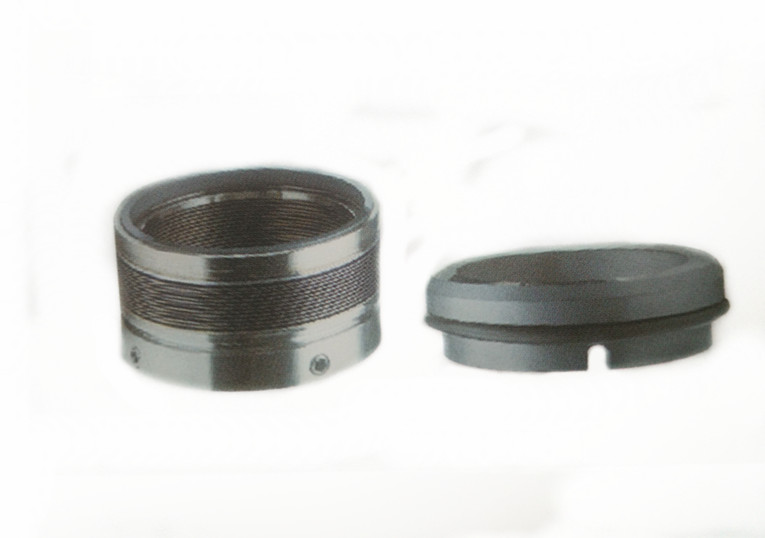

1527 1528
型号：
技术参数：
被密封介质：水、油类、酸、碱等中等以下腐蚀性化工介质
密封腔压力：≤1MPa
密封腔温度：-20℃~150℃
线速度：≤15m/Sec
Mediums to be sealed：Water , oil , acid ，alkali ，etc. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤15m/Sec
