单端面密封 平衡型 任意旋向 Single seal , Balanced , Independent of direction of rotation . E10系列的机械密封轴向尺寸很短，它能代替骨架封油，在许多设备上使用，介质压力可达25 bar. Mechanical seals of the H10 rang have a short installation length (axial) . The H10 is a computer ready-to-fit seal which can be installed in the same axial length as a "lip-seal" and can be used to seal different pressure of up to 20 bar. -
E9
004
003

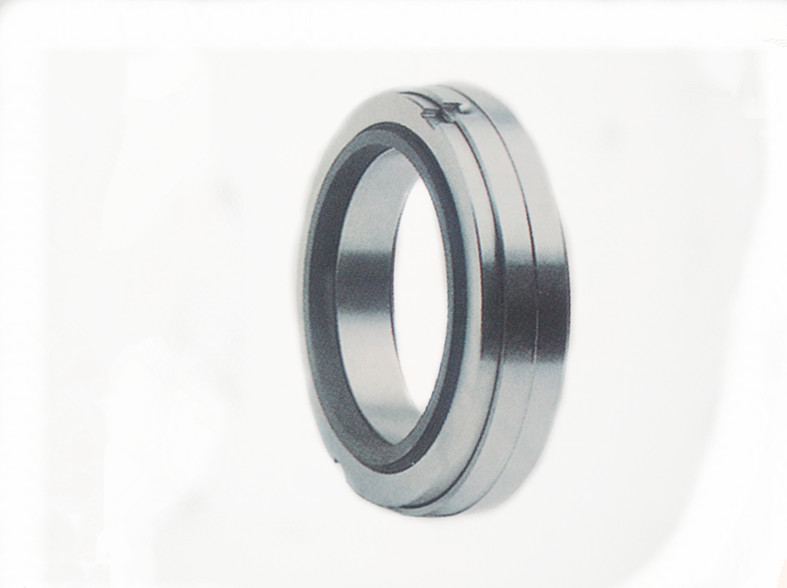

型号：E10
技术参数：
被密封介质：水、油、中等弱腐蚀性介质
密封腔压力：≤2.5 MPa
密封腔温度：-20℃~180℃
线速度：≤35m/Sec
Mediums to be sealed:Water,oil,etc. moderate corrosive and below medium
Pressure in the sealed chamber:：≤2.5MPa
Temperature in the sealed chamber：-20℃~180℃
Linear velocity：≤35m/Sec
