T9
005
-
T7S
006
双端面密封 非平衡型 任意旋向 多弹簧结构 Double seal , Unbalanced, Dependent, on direction of rotation Multiple spring 具有与T7系列相同设计性能，除驱动座的安装长度职位，其他安装尺寸（d<100mm）复合DIN24960标准。 The T7 family of single seals(easy-to-replace seal face, etc.). Apart from the installation length of the drive collar , all fitting dimensions( d1 <100 mm) conform with DIN 24960. -
153
008
双端面密封 非平衡型 任意旋向 Double seal,Unbalanced,Independent of direction of rotation -
FBD
009
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
MSS32B(水封）
010
-
BIA
011
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
T1
012
单端面密封 非平衡型 任意旋向 橡胶波纹管 Single seal,Unbalanced,Independent on direction of rotation,Elastomer bellows -
WB2
013
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent on direction of rotation
006

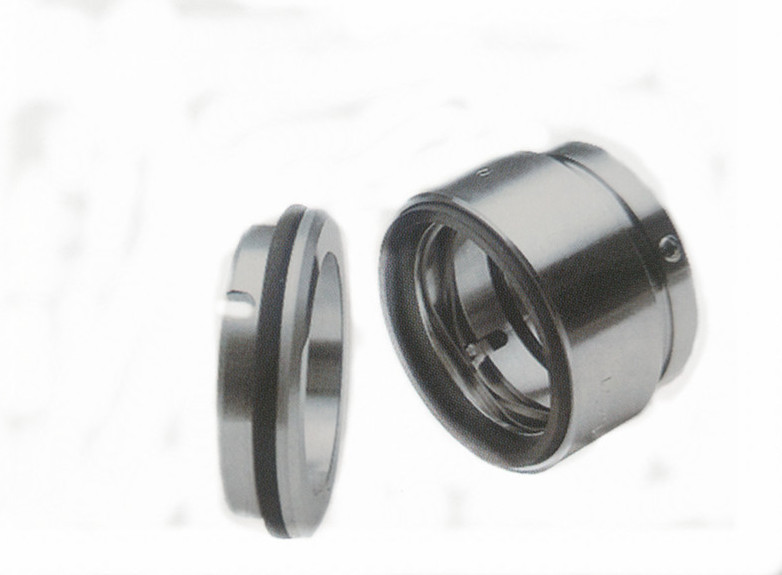

型号：T7S
技术参数：
被密封介质：水、油、中等弱腐蚀性介质
密封腔压力：≤1MPa
密封腔温度：-50℃~220℃
线速度：≤20m/Sec
MAIN CHARACTERISTICS:
Mediums to be sealed: Water ,oil ,etc.weak corrosive medium
Pressure in the sealed chamber : ≤ 1MPa
Temperature in the sealed chamber ：-50℃~220℃
Linear velocity ：≤ 20m/Sec
008

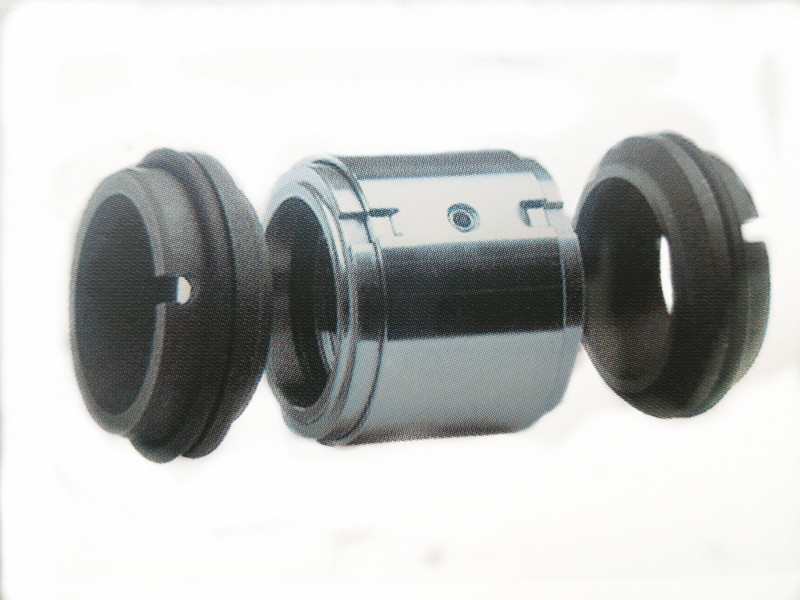

型号：153
技术参数：
被密封介质：水、油类、酸、碱等中等以下腐蚀性化工介质
密封腔压力：≤0.5MPa
密封腔温度：80℃
线速度：≤15m/Sec
轴径：35-70mm
Mediums to be sealed：Water , oil , acid , alkali , etc. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec
Shaft：35-70mm
009
型号：FBD
技术参数：
被密封介质：水、油、中等以下腐蚀性介质
密封腔压力：≤0.6MPa
密封腔温度：-20℃~100℃
线速度：≤10m/Sec
Mediums to be sealed：Water , oil , etc. moderate corrosive and below medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec
011
型号：BIA
技术参数：
被密封介质：水、油、等弱腐蚀性介质
密封腔压力：≤0.6MPa
密封腔温度：-20℃~100℃
线速度：≤10m/Sec
Mediums to be sealed：Water , oil , etc. weak corrosive medium
Pressure in the sealed chamber：≤0.6MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤10m/Sec
012

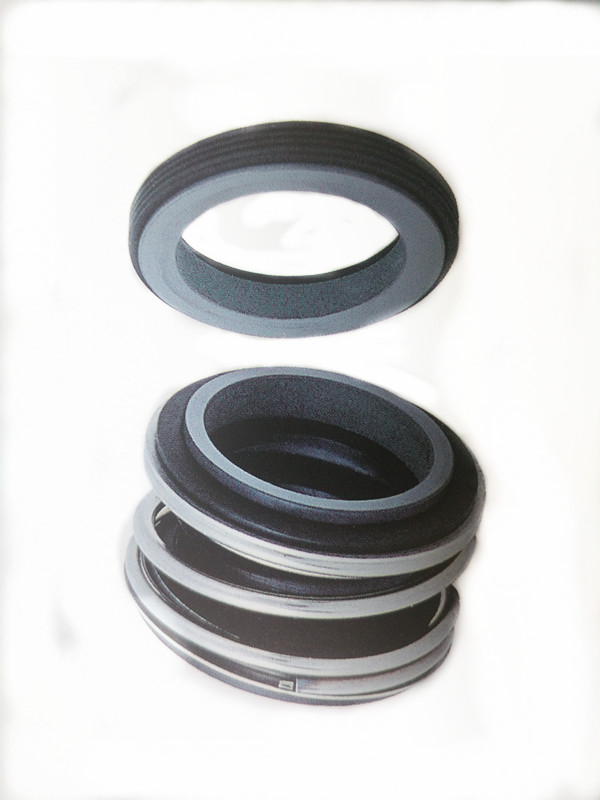

型号：T1
技术参数：
被密封介质：含有颗粒的废水、污水等一般弱腐蚀性液体
密封腔压力：≤1MPa
密封腔温度：-20℃~140℃
线速度：≤10m/Sec
Mediums to be sealed:Waste water with particles,sewage etc. common weak corrosive liquid
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~140℃
Linear velocity：≤10m/Sec
013

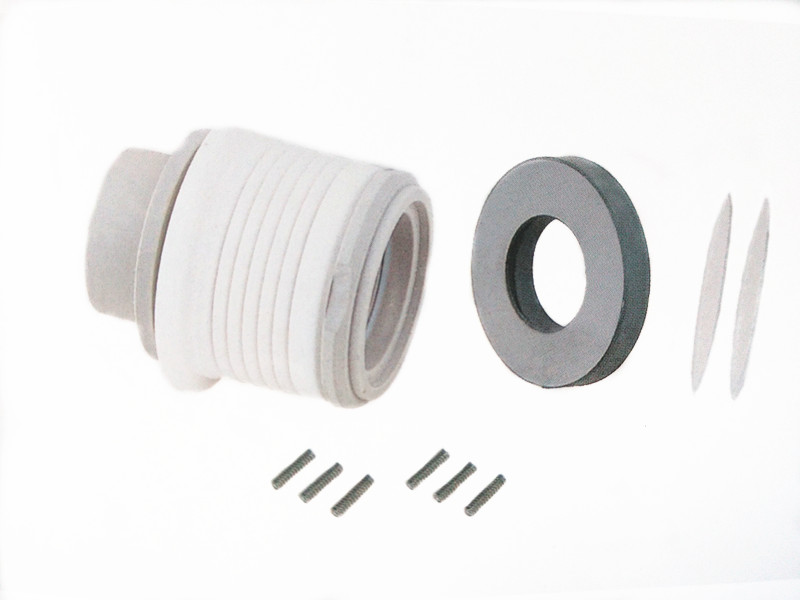

型号：WB2
技术参数：
被密封介质：各种浓度的硫酸，盐酸，醋酸，磷酸，稀硝酸等强腐蚀性化工介质
密封腔压力：≤0.5MPa
密封腔温度：80℃
线速度：≤15m/Sec
Mediums to be sealed：Highcorrsion mediums in different concetration,such as sulfuric,hydrchloric scid,phosphoric acetic acid,ect
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：80℃
Linear velocity：≤15m/Sec
