212
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent on direction of rotation -
203 GOX CAR
-
123
123
123 -
JA
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
224

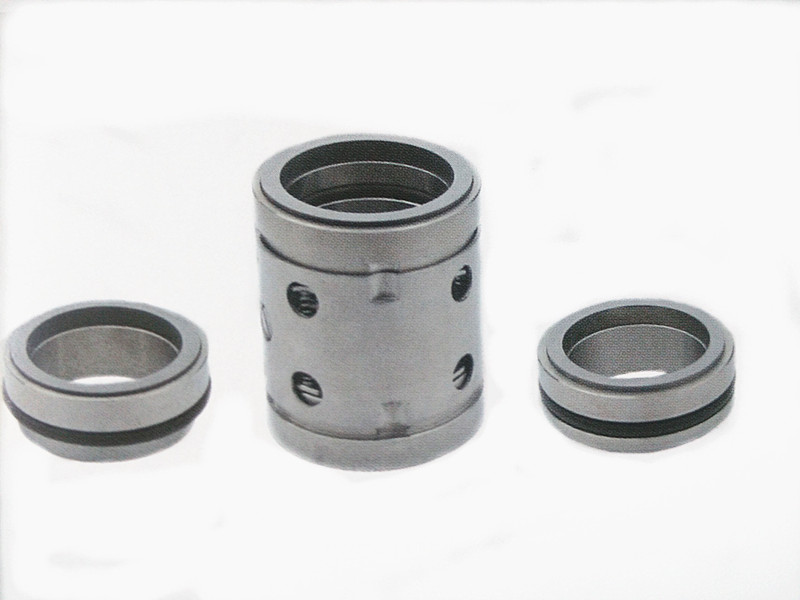

双端面密封 非平衡型 任意旋向 Double seal,Unbalanced,Independent of direction of rotation -
SIC环
008
-
104B
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation -
700
单端面密封 非平衡型 任意旋向 Single seal,Unbalanced,Independent of direction of rotation
212
型号：
技术参数：
被密封介质:各种酸性液体（氢氟酸、发烟硝酸除外）
密封腔压力：≤0.5MPa
密封腔温度：-20℃~120℃
线速度：≤10m/Sec
Mediums to be sealed：All kinds of acid(except HF,smog HNO₃)
Pressure in the sealed chamber：≤0.5MPa
Temperature in the sealed chamber：-20℃~120℃
Linear velocity：≤10m/Sec
JA
型号：
技术参数：
密封介质：水、油类、酸、碱等中等以下腐蚀性化工介质
密封腔压力：≤1MPa
密封腔温度：-20℃~120℃
线速度：≤15m/Sec
轴径：14-250
Mediums to be sealed：Water,oil,acid,alkali,ect. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤1MPa
Temperature in the sealed chamber：-20℃~120℃
Linear velocity：≤15m/Sec
Shaft：14-250
224
型号：
技术参数：
被密封介质：水、油类、酸、碱等中等以下腐蚀性化工介质
密封腔压力：≤0.8MPa
密封腔温度：-20℃~150℃
线速度：≤3m/Sec
轴径：35-85mm
Mediums to be sealed：Water , oil , acid , alkali , etc. moderate and below corrosive chemical medium
Pressure in the sealed chamber：≤0.8MPa
Temperature in the sealed chamber：-20℃~150℃
Linear velocity：≤3m/Sec
Shaft：35-85mm
104B
型号：
技术参数：
被密封介质：水、油、等弱腐蚀性介质
密封腔压力：≤0.7MPa
密封腔温度：-20℃~100℃
线速度：≤5m/Sec
轴径：9-45mm
Mediums to be sealed：Water , oil , etc. weak corrosive medium
Pressure in the sealed chamber：≤0.7MPa
Temperature in the sealed chamber：-20℃~100℃
Linear velocity：≤5m/Sec
Shaft：9-45mm
700
型号：
技术参数：
被密封介质：水、油、等弱腐蚀性介质
密封腔压力：≤0.3MPa
密封腔温度：-20℃~120℃
线速度：≤10m/Sec
轴径：14-30mm
Mediums to be sealed：Water,oil,etc. weak corrosive medium
Pressure in the sealed chamber：≤0.3MPa
Temperature in the sealed chamber：-20℃~120℃
Linear velocity：≤10m/Sec
Shaft：14-30mm
